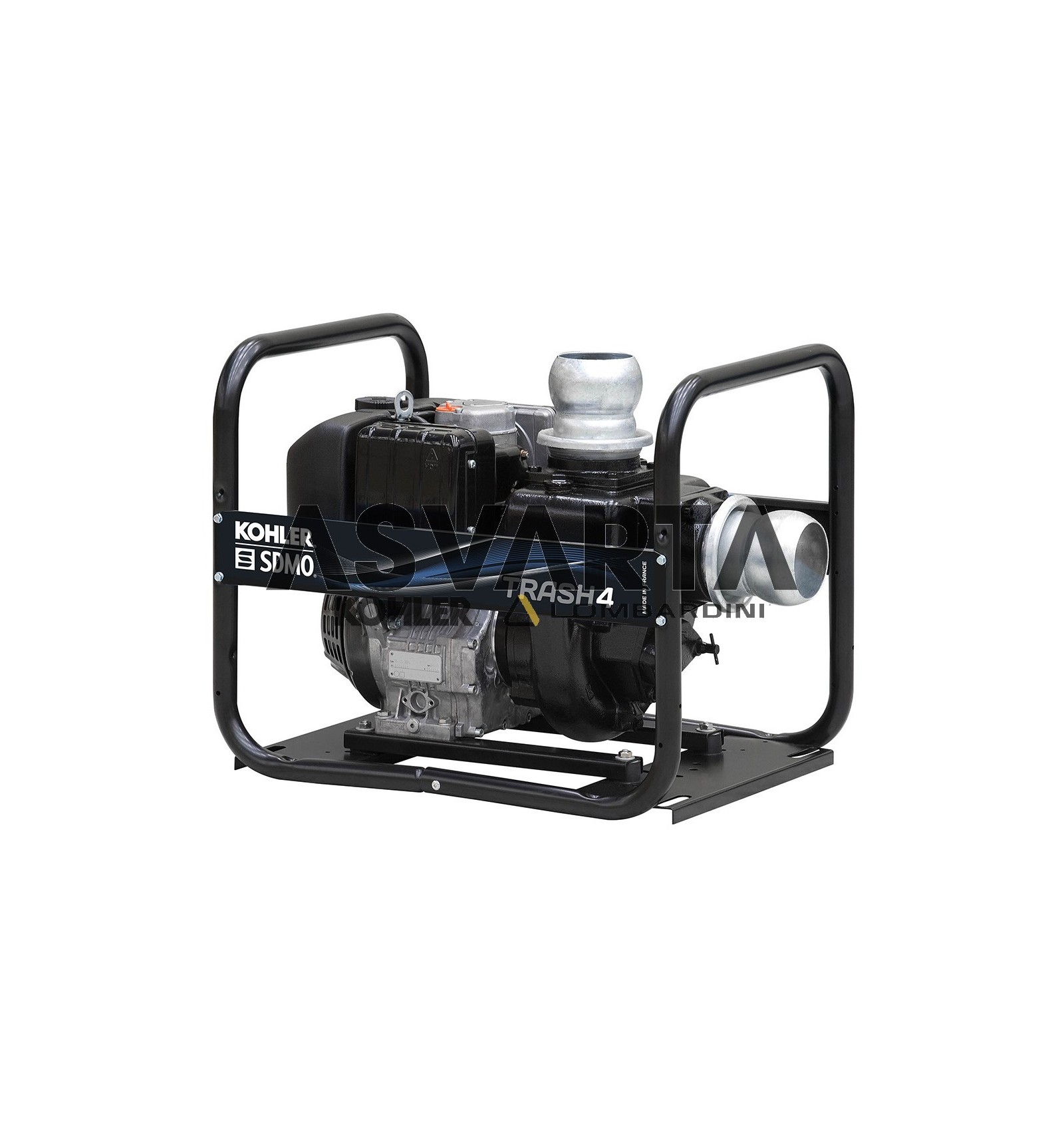

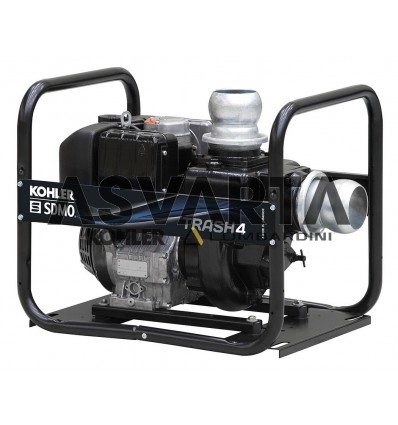

Water Pump Aqualine Specialist Trash 4 C5 Kohler SDMO

Motor pump KOHLER SDMO Trash 4 C5

Thanks to its easy access to the turbine allows easy maintenance. The effectiveness of the Aqualine Specialist range allows this motor pump model to be efficient and demonstrate great results in external conditions. Tr models, usually designed for dirty water,stand out for their powerful flow rate and suction diameter.

You'll find the solution you need in our SDMO Aqualine Specialist Water Pump Models equipped with engines air KOHLER -cooled SDMO professionals.

Main advantages Trash 4 C5 KOHLER SDMO

We consider the following advantages over the market:

• Resistant pump body.
• engine KOHLER air-cooled room.
• It has automatic besting.
• Easy access to the turbine.
• Various complementary accessories on offer.

They also comply with the new European Union pollution regulations. (STAGE V 2016/1628 EU)

Add-ons added in delivery with the purchase of Trash 4 C5 SDMO

The following accessories at no additional cost are delivered along with the purchase of your motor pump:

• Grid.
• Multiple quick connections.
• A few clamps.
• User manual and maintenance.

Below you can find a number of add-ons that can be purchased separately.

WATER PUMP SPECIFICATIONS

• Range AQUALINE SPECIALIST
• Type liquid Extremely heavily sedimented water pump
• Suction diameter [mm] 100
• Backflow diameter (mm) 100
• Outflow maximum (L/min) 1600
• Outlflow maximum (m3/h) 96
• Lifting height (m) 17
• Suction height (m) 8
• Granulometry (mm) 20
• Automatic priming Yes
• Fuel Diesel Fuel
• Tank (L) 4,30
• 75% cons. (l/h) * 1,40
• 75% Autonomy (h) * 3,10
• Sound power level guaranteed LwA dB(A) 110
• Acoustic pressure level @1m in dB(A) 95
• Acoustic pressure level @7m in dB(A) 81

ENGINE SPECIFICATIONS

• Engine brand KOHLER DIESEL
• Engine ref. KD350_C5
• Distribution Diesel O.H.V.
• Start Starter
• Oil shutdown Non
• Displacement (cm3) 349
• Oil system capacity including filters (L) 1,20

DIMENSIONS AND WEIGHT

• Length (cm) 71,50
• Width (cm) 57
• Height (cm) 59
• Dry Weight (kg) 90

PACKAGING

• Packaging type Box
• Length (cm) 73
• Width (cm) 58
• Height (cm) 59,50
• Weight (kg) 102
• Pallet type 120/80
• Number of box by pallet 4
• Pallet height (cm) 132
• weight of the packaged Pallet (kg) 418
