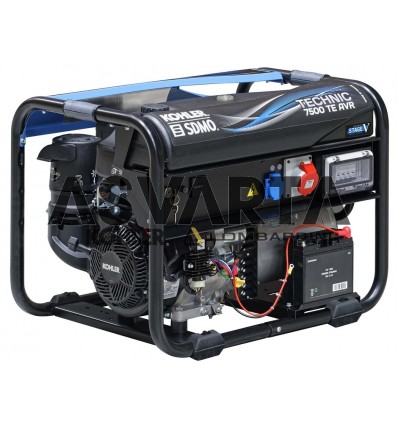

Generating Set Technic 7500 TE AVR C5 Kohler SDMO

Technic 7500 TE AVR C5

OIL WARNING LIGHT thanks to this functionality, the control panel will indicate with a light indicator the lack of engine oil.

The APM202 control panel displays overspeed, starting failure, oil pressure, battery and temperature AVR By regulating the voltage electronically by ±2%, depending on the model, the AVR eliminates all risk of damage to boilers or certain kinds of electronic equipment.

STAGE V (2016/1628 EU) : This product is compliant with regulation for implementing requirements relating to gaseous and pollutant emission limits in Europe

Advantages SDMO Technic 7500 TE AVR C5

• Entire group guaranteed 3 years
• KOHLER air-cooled industrial engine
• Electric starter with batteries without maintenance
• Connection interface equipped with an hour meter
• AVR : Automatic tension regulation

Add-ons included with Technic 7500 TE AVR C5

• Funnel
• Battery without maintenance
• Floor maintaining slot
• User and maintenance manual
• Ergonomic handle grip

You can also review our entire catalogue of SDMO generators and find all the options that the SDMO Group Spain offers at a professional and private level.

ENGINE SPECIFICATIONS

• Engine brand: KOHLER KDI
• Engine ref.: CH440E_C5
• Distribution: O.H.V.
• Start: Electric Starter
• Oil shutdown: Oui
• Displacement (cm3): 429
• Oil system capacity including filters (L): 1,30

ALTERNATOR SPECIFICATIONS

• Technology: Collar and brush
• AVR Regulation: Yes
• Indication of protection: IP 23
• Insulation class: H

PACKAGING

• Packaging type: Box
• Length (cm): 82
• Width (cm): 56,50
• Height (cm): 60
• Weight (kg): 110,50

SHIPPING IN SPAIN AND PORTUGAL

IBERIAN PENINSULA (SPAIN AND PORTUGAL)

Shipping cost: 7,50 €

Balearics, Ceuta and Melilla

Shipping cost: 9,50 €

Canary Islands

Shipping rates to the Canary Islands depend on the weight of the package:

Shipping to European Union

*Zone 1: Germany, Belgium, Denmark, Slovakia, France, Ireland, Italy, Luxembourg, Netherlands, Poland, Sweden

**Zone 2: Austria, Croatia, Estonia, Finland, Latvia, Lithuania, Czech Republic

**Zone 3: Bulgaria, Cyprus, Slovenia, Hungary, Malta, Romania

Shipments to Europe to non-European Union Countries (*1)

Shipping to África (*2)

Shipping to Asia y Oceanía (*3)

Shipping to North América (*4)

Shipping to Central, South America and Islands (*5)

Shipping to Nordic Islands (*6)

(*1) No EU: Norway, United Kingdom, Switzerland, Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldova, Montenegro, Serbia, Ukraine, Turkey, Gibraltar, Vatican City, Liechtenstein, Monaco, San Marino, Guernsey, Jersey,

(*2) Africa: Morocco, Equatorial Guinea, Algeria, Egypt, South Africa, Chad, Gambia, Central African Republic, Tunisia, Yemen, Sudan, Angola, Benin, Botswana, British Indian Ocean Territory, Burkina Faso, Burundi, Cape Verde, Cameroon, Democratic Republic of Congo, Republic of Congo, Ivory Coast, Djibouti, Eritrea, Ethiopia, Gabon, Ghana, Guinea-Bissau, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritius, Mauritania, Mozambique, Namibia, Niger, Nigeria, Reunion Island, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Swaziland, Tanzania, Togo, Uganda, Zambia, Zimbabwe, Comoros, Mayotte, Somalia, Libya

(*3) Asia + Oceanía: Israel, Bangladesh, Bhutan, Burma, Brunei, Nepal, Sri Lanka, Armenia, Azerbaijan, Georgia, Kazakhstan, Kyrgyzstan, Turkmenistan, Uzbekistan, Singapore, Thailand, Taiwan, Mongolia, Hong Kong, Philippines, Indonesia, Malaysia, Japan, South Korea, India, Saudi Arabia, Bahrain, United Arab Emirates, Jordan, Kuwait, Lebanon, Oman, Pakistan, Qatar, China, Laos, Macau, East Timor, Vietnam, Afghanistan, North Korea, Palestinian Territories, Iraq, Tajikistan, Cambodia, Iran, Russia, Australia, Norfolk Island, New Zealand, Cook Islands, Fiji, Guam, Northern Mariana Islands, Kiribati, Marshall Islands, Micronesia, New Caledonia, Palau, Papua New Guinea, French Polynesia, Solomon Islands, Samoa, American Samoa, Tuvalu, Vanuatu, Wallis and Futuna, Maldives, Tonga, Nauru, Niue, French Southern Territories.

(*4) North America: USA, Mexico, Canada, Saint Pierre and Miquelon

(*5) Central + South America + Islands: Puerto Rico, Belize, Costa Rica, El Salvador, Guatemala, Haiti, Honduras, Nicaragua, Dominican Republic, Chile, Argentina, Brazil, Bolivia, Panama, Paraguay, Peru, Uruguay, Venezuela, Colombia, Ecuador, Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bermuda, Dominica, Grenada, Guadeloupe, Guyana, Virgin Islands, Jamaica, Martinique, Montserrat, Saint Martin, Saint Vincent and the Grenadines, Saint Lucia, Trinidad and Tobago, Netherlands Antilles, South Georgia and the South Sandwich Islands, Maldives, Saint Barthelemy, Turks and Caicos Islands, Cayman Islands, Saint Kitts and Nevis, US Virgin Islands, Cuba, French Guiana, Suriname.

(*6) Nordic Islands: Iceland, Greenland, Faroe Islands.

General

• Engine brand JOHN DEERE
• Engine part no. 3029DSG20 *
• Suction type Atmo
• Cylinder arrangement L
• Number of cylinders 3
• Displacement (l) 2,91
• Diameter (mm) * Stroke (mm) 106 * 110
• Compression ratio 17.2 : 1
• Speed (tr/mn) 1500
• Max. auxiliary power at nominal speed (kW) 31
• Frequency regulation (%) +/- 2.5%
• Injection type Direct
• Type of control Mechanical
• Air Filter Type, Dry Models

Fuel system

• Maximum flow rate of fuel oil pump (l/h) 56
• Max. pressure in the fuel circuit (m) 1
• Consumption with fan
• Consumption 110% load (l/h) 8,60
• Consumption 100% PRP load (l/h) 7,50
• Consumption 75% PRP load (l/h) 5.50
• Consumption 50% PRP load (l/h) 4
• Emissions 1165
• PM emission (mg/Nm3) 5% O2 74
• CO emission (mg/Nm3) 5% O2 1165
• NOx emission (mg/Nm3) 5% O2 5245
• HC emission (mg/Nm3) 5% O2 30

Lubrication system

• Oil capacity (l) 6
• Min. oil pressure (bar) 1
• Max. oil pressure (bar) 5
• Oil sump capacity (l) 5,30
• Oil consumption 100% ESP 50Hz (l/h) 0.07
• Air intake system
• Max. inlet back pressure (mm H2O) 300
• Combustion air flow rate (l/s) 32

Exhaust system

• PRP ESP
• Heat expelled in the exhaust (kW) 31
• Exhaust gas temperature (°C) 555
• Exhaust gas flow (l/s) 87
• Max. exhaust back pressure (mm H2O) 750
• Cooling system
• Engine and radiator capacity (l) 16,10
• Fan power (kW) 0.70
• Fan air flow (m3/s) 1.74
• Radiator back pressure (mm H2O) 20
• Type of cooling Glycol-Ethylene
• Radiated heat (kW) 6
• Heat expelled in the water HT (kW) 18
• Water temperature at outlet (°C) 93
• Engine stop water temperature (°C) 105
• Start of HV thermostat opening (°C) 82
• Total opening of HV thermostat (°C) 94

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00404T
• Number of poles 4
• Number of bearings
• Ring and brushless technology
• IP23 protection rating
• Insulation class H
• Number of wires 12
• Ability to maintain a
• short circuit at 3 In for 10 s
• AVR Adjustment Yes
• Direct Coupling

Application data

• Excess speed (rpm) 2250
• Power factor (Cos Phi) 0.80
• Regulating the voltage to the regime
• established (+/- %) 1
• Waveform: NEMA=TIF <45
• Waveform: IEC=FHT <2
• Total harmonic distortion in
• vacuum DHT (%) 3,6
• Total harmonic distortion in
• DHT load (%) 2,0
• Response time (Delta U = 20%)
• transitional) (ms) 200

Performance data

• Continuous rated power 40°C
• (kVA) 20
• Maximum unbalance rate (%) 100
