-25% Motor Kohler KDW 1003 Diesel Expand

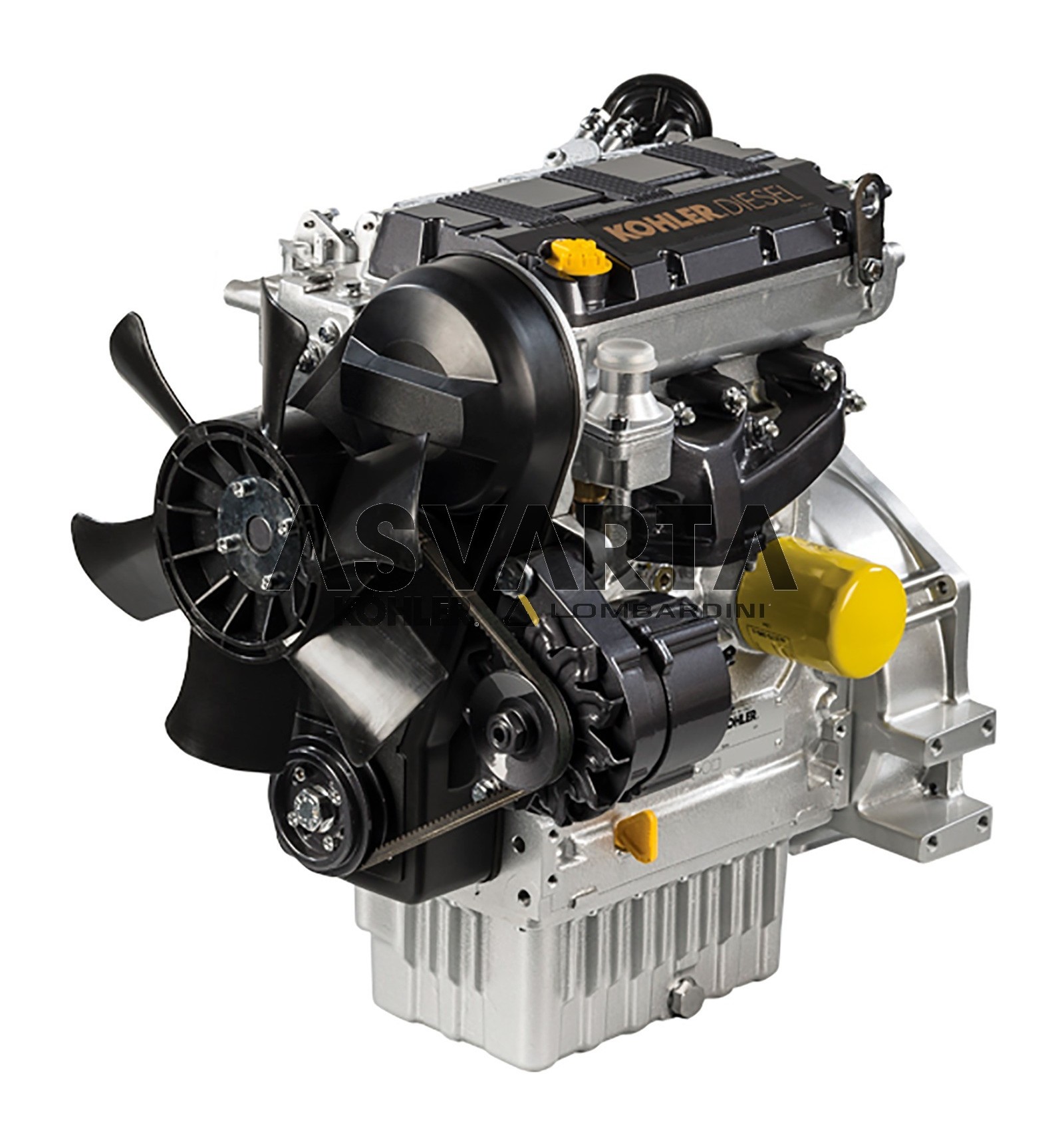

Kohler Diesel Engine KDW 1003

New

The Kohler KDW1003 engine has the following features in common:

  • HP (kW) 23.7(17.7)
  • Water-cooled engine
  • Four-stroke
  • 4 Cylinders in Line
  • Stage V (complies with EU pollutant regulations)
  • Compatible with KDW1003 spare parts
  • 3-year manufacturer's warranty

Check information and availability at info@asvarta.com

More details

25 Items

€4.869,06

€6.492,09

Caja Transporte Asvarta

Camión Transporte Asvarta

Express 2/3 days for europe. Ask us regarding delivery time for others countries

Paga a través de PayPal

Paypal secure payment

Distribuidores Oficiales Kohler y Lombardini

Kohler and Lombardini official distributors

KDW 1003

This engine in its different versions for SDMO generators, engine pumps and hydraulic motors, has a series of particularities that make it unique with respect to its competitors in the market:

  • Engine equipped with feet
  • Without radiator
  • Without fuel tank
  • No exhaust and no starter box
  • Three power take-offs available

Fast-acting fuel injection technology delivers the power you need and the fuel economy you expect. The operation of this engine is almost silent in its entirety. Different versions equipped with silencers are available to help you achieve the expected performance.

Unique features

  • Integrated fuel injection system and air cam help ensure less maintenance and fewer trips to the workshop
  • Superior balance, reduced cylinder volume and belt-driven valve train provide almost no noise and smooth operation
  • Cast iron block construction ensures durability and long-lasting performance.
  • 3-year limited warranty

Uses for Kohler KDW 1003

This engine is valid for the following type of machinery:

  • Mini Dumper
  • Dumper
  • Cement mixer
  • Asphalt cutter
  • Agricultural Machinery
  • Compact shovel loader
  • 4x4 tractors
  • Fruit harvester
  • Aerial platform
  • Sweeper
  • Welder
  • Cooling units
  • Generator
  • Engine Compressor
  • Mini Excavator
Lenght 516
Height 519
Width 412
Height 85
Rotation 50.0 @ 2600
Displacement (cc) 1028
Cooling System Liquid
Cylinders 3
Fuel Diesel
Power 17.7 (23.7) @ 3600
Range KDW FOCS/CHD
Frequency 50hz
  • Model KDW1003
  • HP (kW) 123.7(17.7)
  • Displacement (cc) 62.7 (1028)
  • Bore in (mm) 3 (75)
  • Stroke in (mm) 3.1 (77.6)
  • Gross Torque ft lbs (Nm) 136.8 (50)
  • Compression Ratio 22.8:1
  • Dry Weight lbs (kg) 187.3 (85)
  • Oil Capacity US qts (L) 2.5 (2.4)
  • Lubrication Full pressure w/full-flow filter
  • Dimensions LxWxH (in)* 20.2 x 16.2 x 20.3
Engine Model Spec Number Power PTO / Fan Engine Speed
KDW 1003E530A ED438005SV000000-01 18.0 / 24.5 (hp) Interchangeable Gr. 8-9 Flanging Suction Fan 3000 RPM
Engine Model Spec Number Power PTO / Fan Engine Speed
KDW 1003E530A ED338032SV00000-01 18.0 / 24.5 (hp) Group 2 Hydarulic Adapter Suction fan

3000 RPM

Engine Model Spec Number Power PTO / Fan Engine Speed
KDW 1003E530A ED237003SV00000-02 11.0 / 15.0 (hp) Interchangeable Gr. 8-9 Flanging Suction Fan 3000 RPM

Engine Model Spec Number Power PTO / Fan Engine Speed
KDW 1003E530A ED638006SV00000-01 8.0 / 7.7 (hp)  SAE 5 6 1/2" Flanging Blower Fan 3000 RPM

Engine Model Spec Number Power PTO / Fan Engine Speed
KDW 1003E530A 0 ED638003SV00000-01 18.0 / 24.5 (hp) SAE 5 6 1/2" Flanging Blower Fan 3000 RPM

  • Model KDW1003
  • HP (kW) 123.7(17.7)
  • Displacement (cc) 62.7 (1028)
  • Bore in (mm) 3 (75)
  • Stroke in (mm) 3.1 (77.6)
  • Gross Torque ft lbs (Nm) 136.8 (50)
  • Compression Ratio 22.8:1
  • Dry Weight lbs (kg) 187.3 (85)
  • Oil Capacity US qts (L) 2.5 (2.4)
  • Lubrication Full pressure w/full-flow filter
  • Dimensions LxWxH (in)* 20.2 x 16.2 x 20.3
