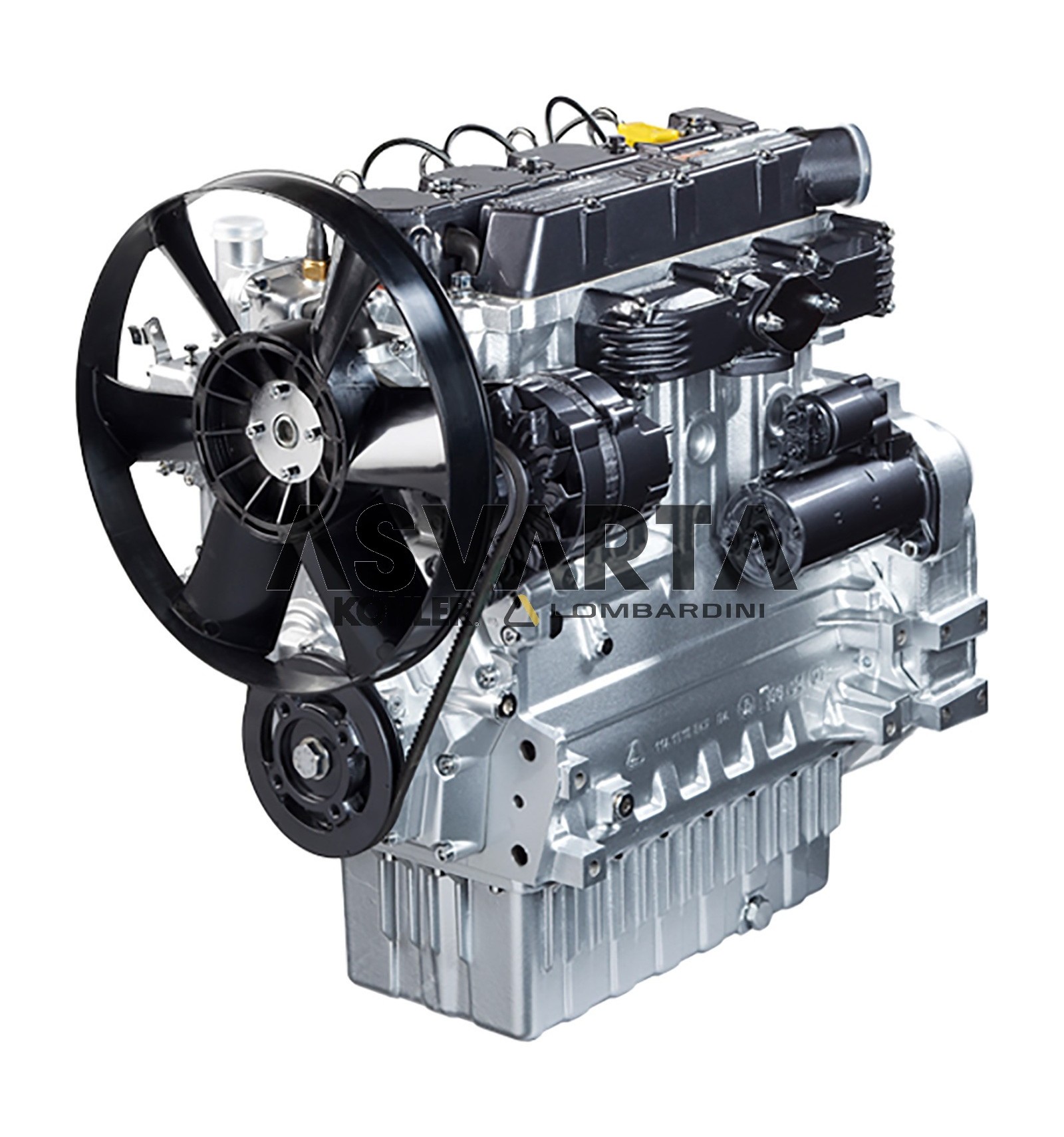

The Kohler KDW 2204 engine is a liquid-cooled in-line four-cylinder diesel engine. It is available with the next specifications.
- HP (kW) 46.9 (33.4)
- Water-cooled engine
- Four-stroke
- 4 Cylinders in Line
- Stage V (complies with EU pollutant regulations)
- Compatible with spare parts KDW2204
- 3 year manufacturer's warranty
2 Items
Available
Warning: Last items in stock!
|
Express 2/3 days for europe. Ask us regarding delivery time for others countries
|
|
Paypal secure payment |
|
Kohler and Lombardini official distributors |
KDW 2204
Engine equipped with feet, no radiator, no fuel tank, no exhaust and no starter box. Three power take-offs available
The displacement is equivalent to 2199 cm³ with a declared power of 34.5 kW. The high reliability, robustness and above all the versatility that distinguish this engine make it particularly suitable for various fields of application, both in agriculture and industry
Recommended uses
- Fruit and Vineyard Tractor
- Fruit picking/harvesting
- 4WD tractor
- Water pump (Irrigation)
- Wood chipper
- Concrete mixer
- Concrete spraying
- Dumper
- Compacting roller - Line stripper
- Compact shovel loader
- Generating set
- Cooling units
- Motorized sweeper
- Aerial platform
| Lenght | 663 |
| Height | 593.15 |
| Width | 445 |
| Height | 192 |
| Rotation | Counter-clockwise |
| Aspiration | Natural |
| Displacement (cc) | 2199 |
| Cooling System | Liquid |
| Cylinders | 4 |
| Fuel | Diesel |
| Power | 34.5 (46.9) @3000 |
| Range | KDW FOCS/CHD |
| Version | Spec Number | KW/HP | PTO / Fan | RPM |
| Standard SDMO Genset | ED237003SV00000-02 | 18.8 / 25.6 | SAE 5 7 1/2" Flanging Suction Fan | 3000rpm |
| Hydraulic Powerpack | ED230007SV0000001 | 18.8 / 25.6 | SAE 5 7 1/2" Flanging Suction Fan | 3000rpm |
| Water-Pump / Genset | ED430001SV0000001 | 18.8 / 25.6 | SAE 5 7 1/2" Flanging Suction Fan | 3000rpm |
| Silence version 1500RPM | ED639002SV0000001 | 15.0 / 20.1 | SAE 4 7 1/2" Flanging Blower Fan | 1500rpm |
| Version | Spec Number | KW/HP | PTO / Fan | RPM |
| Standard SDMO Genset | ED237003SV00000-02 | 18.8 / 25.6 | SAE 5 7 1/2" Flanging Suction Fan | 3000rpm |
| Hydraulic Powerpack | ED230007SV0000001 | 18.8 / 25.6 | SAE 5 7 1/2" Flanging Suction Fan | 3000rpm |
| Water-Pump / Genset | ED430001SV0000001 | 18.8 / 25.6 | SAE 5 7 1/2" Flanging Suction Fan | 3000rpm |
| Silence version 1500RPM | ED639002SV0000001 | 15.0 / 20.1 | SAE 4 7 1/2" Flanging Blower Fan | 1500rpm |
