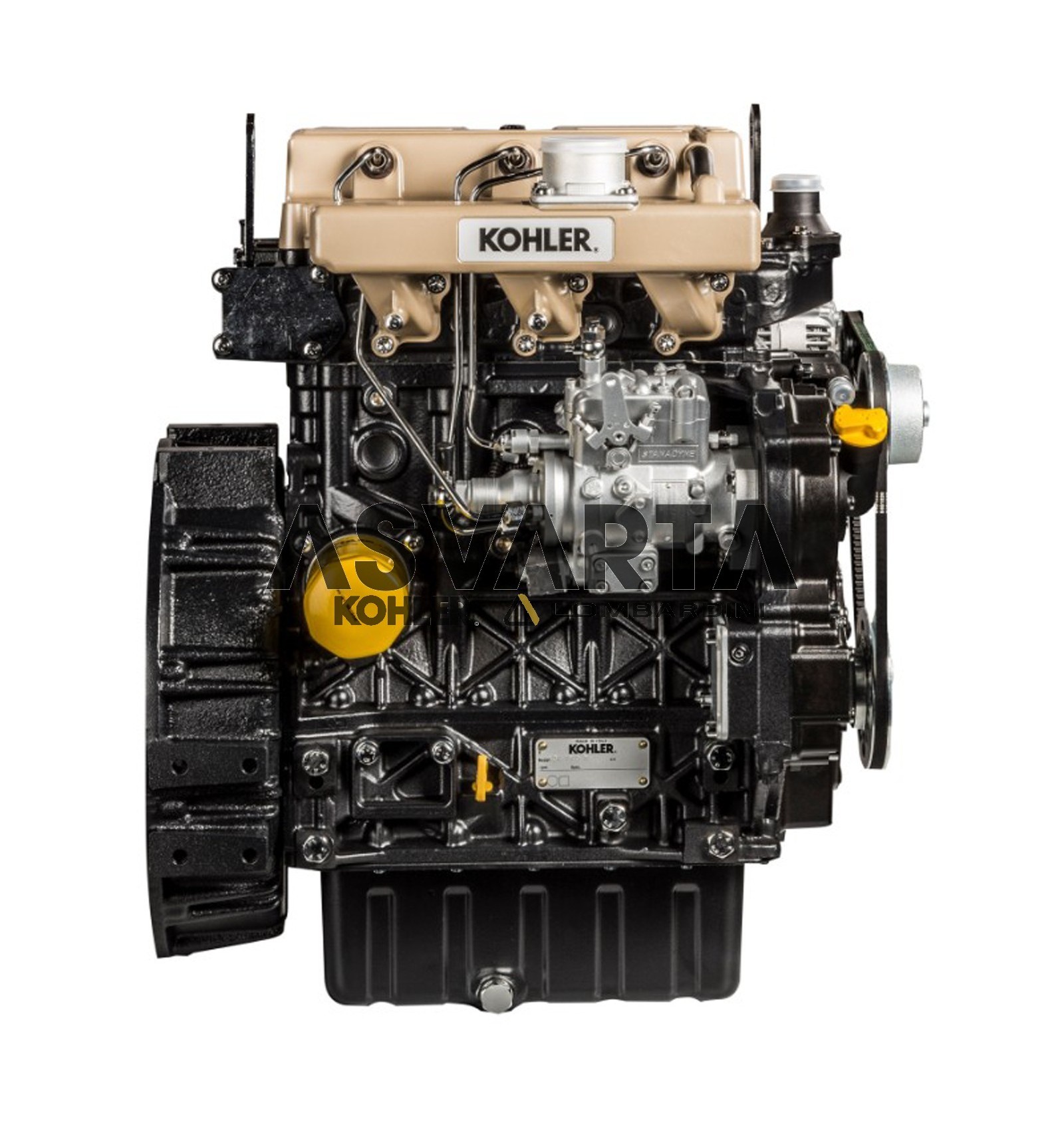

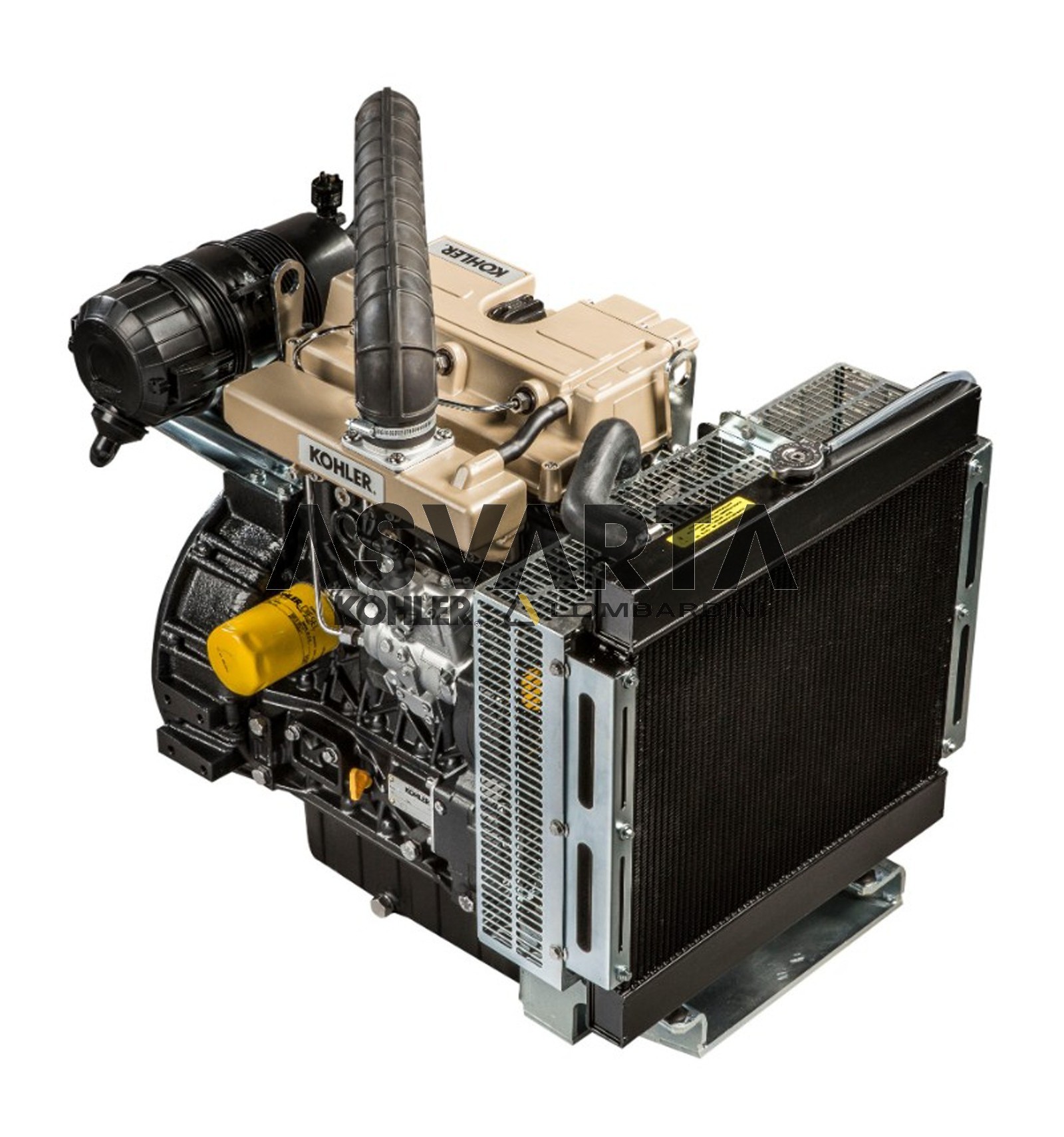

> >Diesel Engine Kohler KDI 1903 TCR
KDI 1903 TCR Kohler engine Diesel Expand

Diesel Engine Kohler KDI 1903 TCR

Kohler Kohler

New

KDI 1903 TCR engine Diesel Kohler 3-cylinder water-cooled in its standard version. See agricultural, industrial, generator sets and manufacturers

  • HP (kW) - 56(42)
  • Four-stroke
  • In-line cylinders
  • Turbocharger with excess gas outlet valve.
  • Stage V
  • Compatible with KDI Kohler Spare Parts

3 Year Manufacturer's Warranty

More details

Look at the information of each model More Details

Caja Transporte Asvarta

Envío internacional gratuito*

Free shipping worldwide.
*See conditions
Distribuidores Oficiales Kohler y Lombardini

Kohler and Lombardini official distributors
Consulta nuestros descuentos para profesionales del sector

SEE MODEL SPECIFICATIONS IN THE "MODELS" TAB

Engine type:

With advanced features such as common rail, 4-valve cylinder head, turbocharger, EGR system with electronic cooling, oil control system and Diesel Oxygen Catalyst (DOC) KOHLER Diesel common rail engines reduce operating costs and maintenance. Discover the durable performance of KOHLER Diesel engines.

Model
Diesel KDI1903TCR
J1940 Horsepower (Kilowatt) 1 56 (42)
Displacement, cubic inches (cc) 113.5 (1861)
Diameter, inches (mm) 3.5 (88)
Stroke, inches (mm) 4 (102)
Maximum torque, lb-ft (Newton/meter torque) 165.9 (225)
Compression ratio
Dry weight, pounds (kg) 512.6 (233)
Oil capacity, quarts USA (L) 8.9 (8.5)
Lubrication
Dimensions, L x W x H, inches (cm) 23.5 x 20.5 x 28.18

User-Friendly Maintenance.

  • No DPF service
  • One side service
  • 500 hour oil change intervals

High Power Performance.

  • Turbocharger
  • High-pressure common rail (2000 bar)
  • 4 valves per cylinder
  • Up to 300 Nm of torque at 1500 rpm

Increased Efficiency.

  • Advanced common rail direct injection system
  • Close-circuit crankcase breather

Quiet, Smooth Operation.

  • Hydraulic valve lifters
  • Controlled combustion with multiple injections per cycle
  • Straight tooth gear reduced pitch
  • Liquid-cooled

Reliability and Long Life Design.

  • Cast iron crankcase with vibration-absorbing bed plate

Common applications:

Orchard/Vineyard tractor - 4WD tractor - Water pump (irrigation) - Concrete sprayer - Dumper - Excavator - Compaction roller - Asphalt cutter - Skid Steer Loader - Wheel loader - Self-priming water pump - Air compressor - Generator - Welder - Engine sweeper - Aerial platform - Rope equipment - High pressure washer - Fire fighting pump - Forklift

Lenght 598.3 (mm)
Height 726 (mm)
Width 530 (mm)
Height 233 kg
Rotation Counterclockwise
Aspiration Turbocharged
Combustion System Direct Injection
Displacement (cc) 1861
Cycle 4 strokes
Cooling System Liquid
Oil Sump Capacity 8.5
Cylinders 3
FARMING Engine optimised for conventional tractors, fruit trees and vineyard tractors.
INDUSTRIAL | BUILDING Cement mixer, Dumper, Minidumper, Mini excavator, Motor compressor, Vibrating plate, Roller, Asphalt cutter
Fuel Diesel
Power 42 kW (56 HP)
Tank (L) 8.5 l

ElectroPack-PPack Catalogue

Download (3.85M)

ElectroPack-PPack Catalogue

Download (3.85M)

ElectroPack-PPack Catalogue

Download (3.85M)

KDI 1903 TCR Tab

Download (2.08M)

KDI 1903 TCR Data

Download (2.08M)

KDI 1903 TCR Fiche

Download (2.08M)

We detail the use of the engine according to its model, thus giving three global options according to its use for the consumer:

  • FTF: Standard Version
  • PowerPack: Industrial engines up to 2300 revolutions
  • ElectroPack: Motors for generators up to 1500 revolutions.

FTF Standard version without radiator, from the fan to the power take-off. With flying crankshaft and SAE4 engine and a 71/2" flying hood

Model FTF Specifications
KDI-TCR 1903E5/26
  • Stage V
    Engine with exhaust pipe and particulate filter with radial outlet (DPF)
  • Without Radiator

KDI 1903 PowerPack version, industrial motors up to 2300 rpm.

Model PowerPack Specifications
KDI1903TCR/26 - PP-EMAP
  • Industrial Engine
    Catalyst with Axial Output (DOC)
    T4F
  • Radiator
KDI-TCR 1903E5/26 - PP-EMR-A
  • Industrial Engine
    Engine with exhaust pipe and particulate filter with radial outlet (DPF)
    Stage V
    Auxiliary Power Take-Off (PTO)
  • Radiator
KDI-TCR 1903E5/26 - PP-LAA-A
  • Industrial Engine
    Engine with exhaust pipe and particulate filter with radial outlet (FLOAT DPF)
    Stage V
    Auxiliary Power Take-Off (PTO)
  • Radiator
KDI-TCR 1903E5/26 - PP-EMA-A
  • Industrial Engine
    Engine with exhaust pipe and particulate filter with radial outlet (DPF Engine mounted with axial outlet)
    Stage V
    Auxiliary Power Take-Off (PTO)
  • Radiator
KDI-TCR 1903E5/26 - PP-EMR
  • Industrial Engine
    Engine with exhaust pipe and particulate filter with radial outlet (DPF Engine mounted with auxiliary radial)
    Stage V
    Auxiliary Power Take-Off (PTO)
  • Radiator
KDI-TCR 1903E5/26 - PP-LAA
  • Industrial Engine
    Engine with exhaust pipe and particulate filter with radial outlet (FLOAT DPF)
    Stage V
  • Radiator
KDI1903M/26 - PP-NS
  • No post-processing system
    Suction fan
    Export EU
  • Radiator
KDI1903M/26 - PP-NP
  • No post-processing system
    Stationary EU
  • Radiator

KDI 1903 Electropack version, motors for generators up to 1500 rpm

Modelo ElectroPack Características
KDI-TCR 1903E5/15 - EP-LAA
  • Engine for Generators
    Stage V
    Engine with exhaust pipe and particulate filter with radial outlet (FLOAT DPF)
  • Radiator
KDI-M 1903E5/15 - M-EP-NP
  • Engine for Generators
    No post-processing system
    Suction fan
  • Radiator
KDI1903M/15 - EP-NP
  • Engine for Generators
    No post-processing system
    Suction fan
  • Radiator
