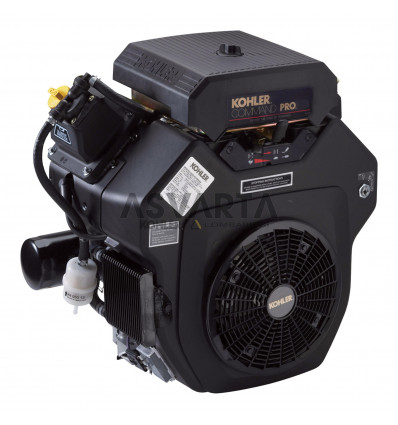

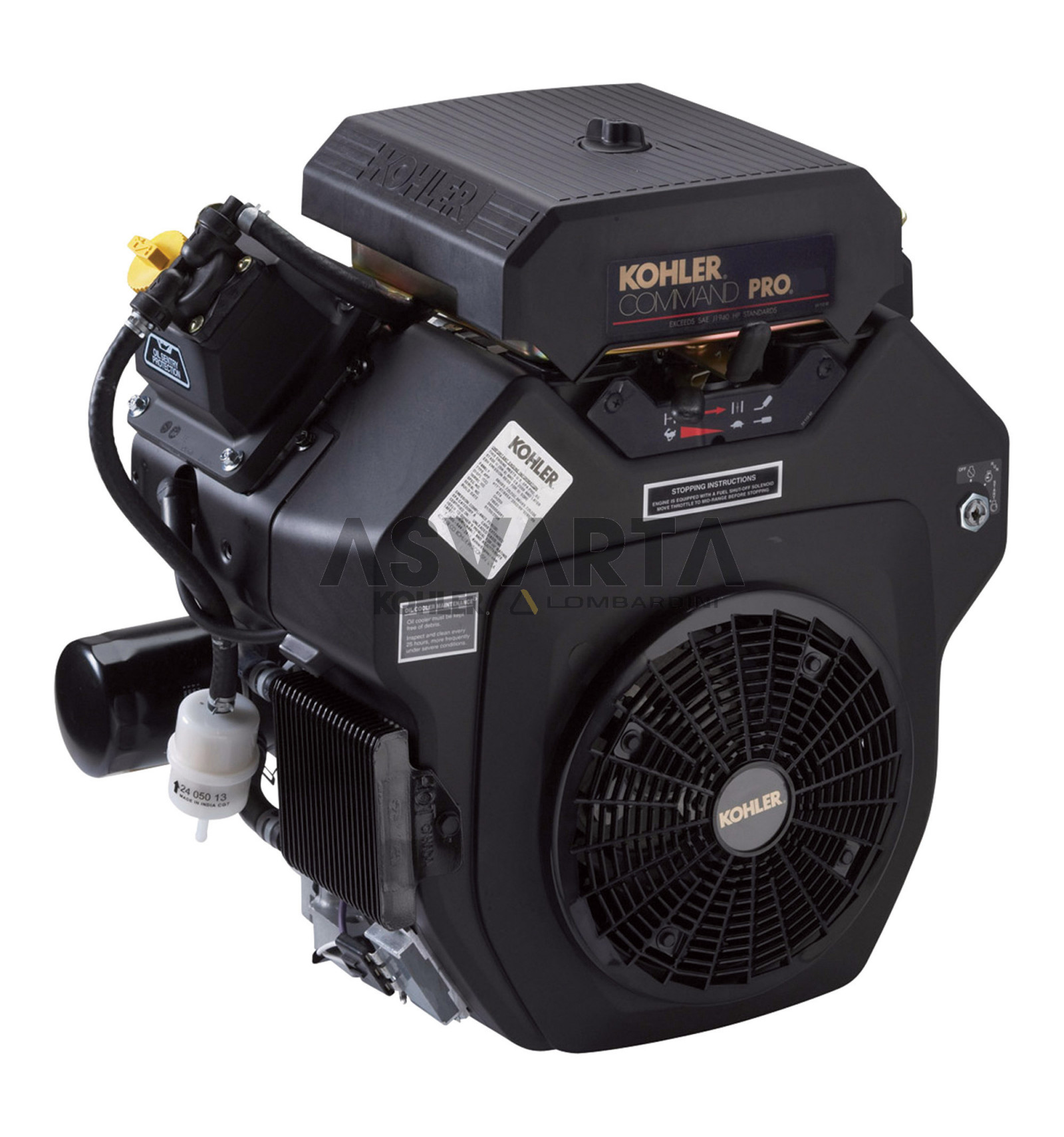

Kohler Command Pro CH730 Engine

TECHNICAL DATASHEET

• Number of cylinders: 2
• Number of c.c.: 725
• NB (in Kw): 18.6
• Number of horse powers: 25
• Weight (in Kg): 43

Model

• Command PRO CH730

HP (kW) 1

• 23.5(17.5)

Displacement (cc)

• 44.0 (725)

Bore in (mm)

• 3.3 (83)

Stroke in (mm)

• 2.6 (67)

Gross Torque ft lbs (Nm) 1

• 38.4 (52.1)

Compression Ratio

• 9.0:1

Dry Weight lbs (kg)

• 94 (43)

Oil Capacity US qts (L)

• 2 (1.9)

Lubrication

• Full pressure w/full-flow filter

Dimensions LxWxH (in)*

• 14 x 17.7 x 19

Backpressure Limit 2

• 50

Certified Power HP (kW) 3

• 22.3 (17)

Certified RPM

• 3600

Emissions Compliance

• CARB Phase III

EPA Phase III

• EU Stage V

Engine Type

• Commercial
