ENGINE KOHLER COMMAND PRO CH640 Expand

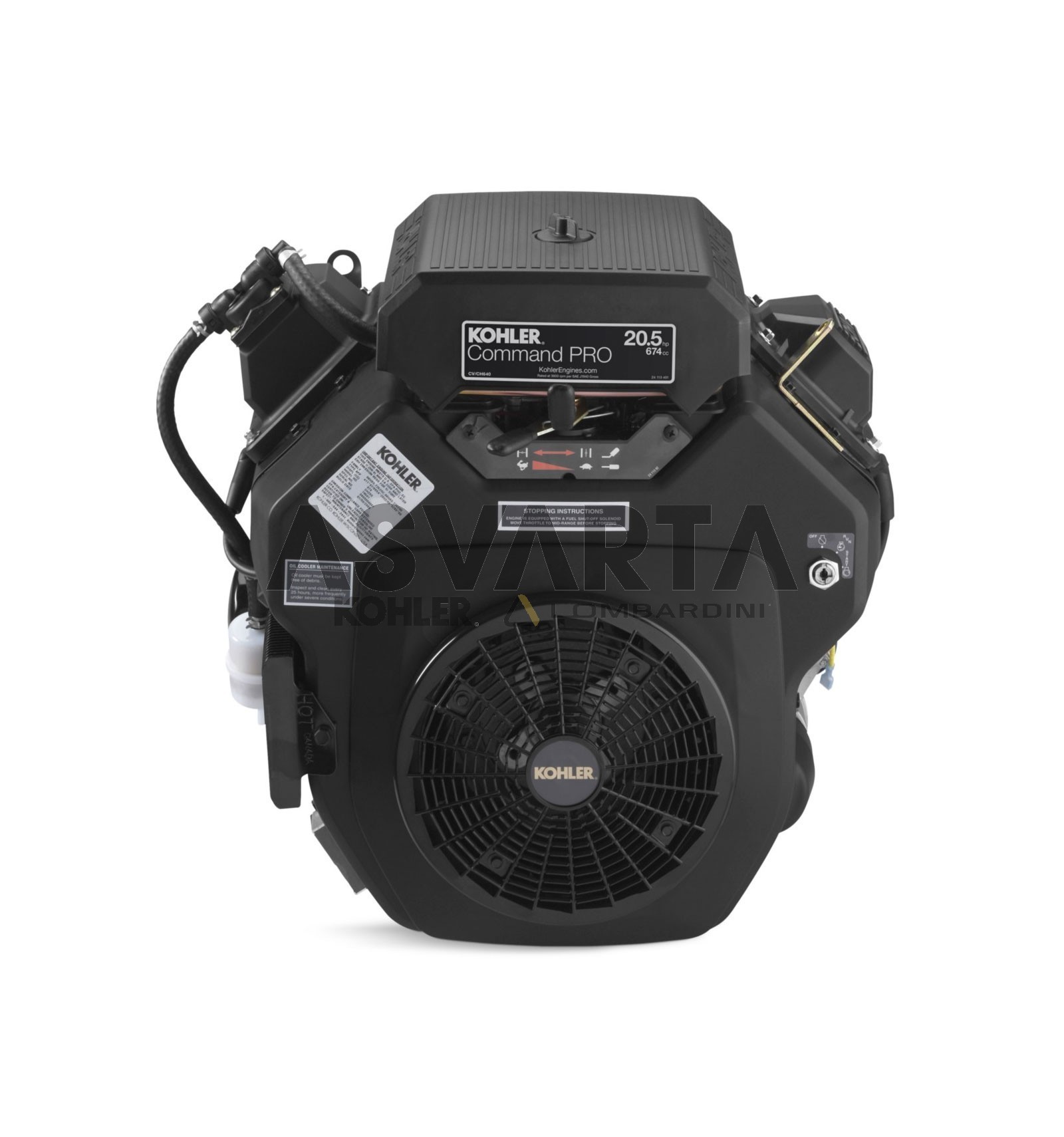

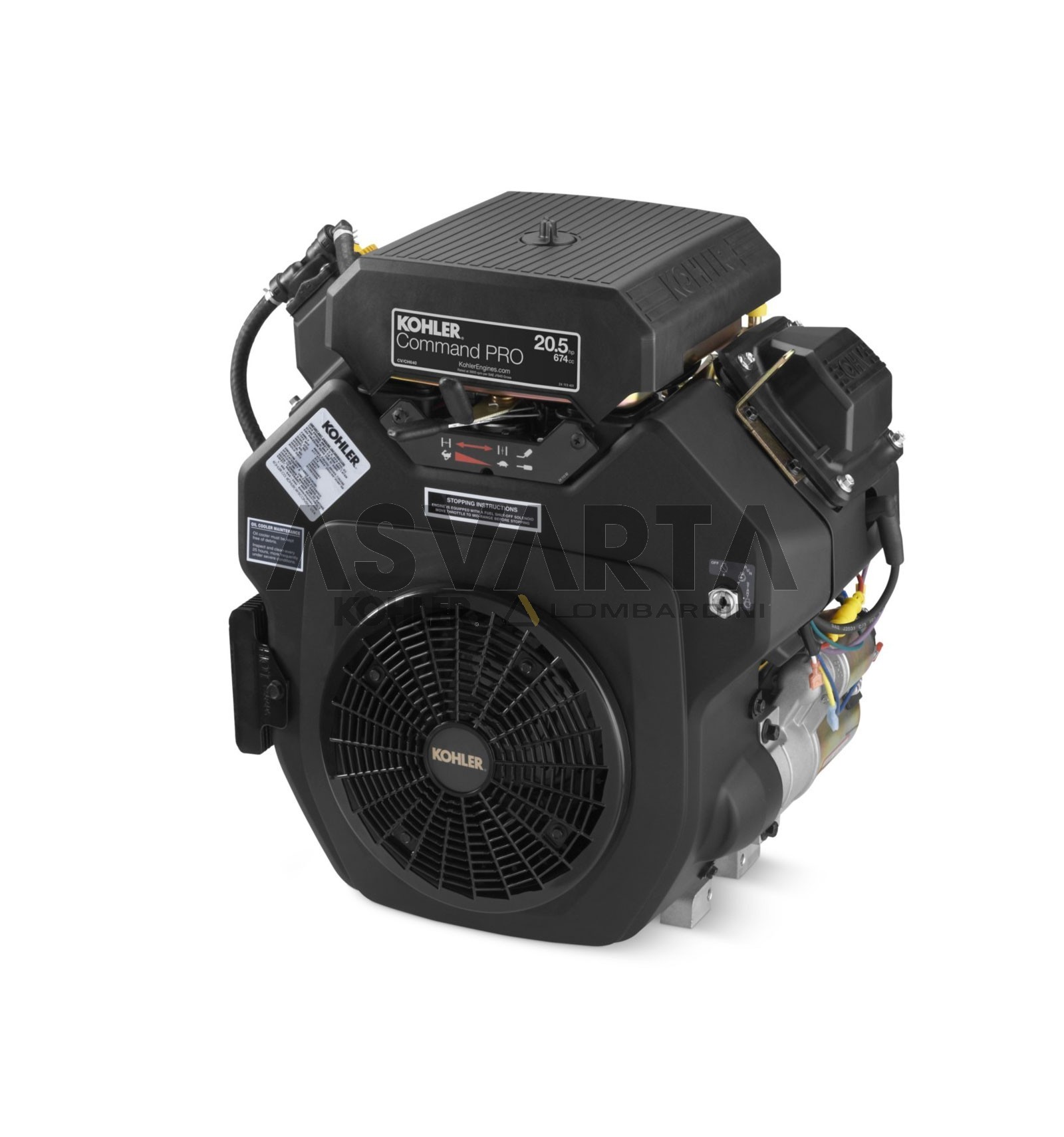

Kohler Command CH640 Engine

Kohler Kohler

New

Engine Kohler Command Pro ch640

  • Gasoline
  • Power 20.5 HP
  • Electric start
  • crankshaft according to version
  • 2 V-cylinders
  • 4 times
  • Air-cooled
  • 674cc
  • 3600rpm

3 Years Manufacturer's Warranty

More details

Available

€1.678,56 tax incl.

€1.678,56 tax excl.

Caja Transporte Asvarta

Distribuidores Oficiales Kohler y Lombardini

Kohler and Lombardini official distributors

Easy maintenance.

  • Extended maintenance intervals
  • plug oil metering handle and filling box
  • Double oil draining
  • Easily accessible oil metering and filling rod
  • Two-year limited warranty

High power performance.

  • High-performance spark plugs
  • 20 amp regulated load
  • Head Valve Design (OHV)

Reliable, long-life design.

  • crankshaft hardened
  • fan -efficiency screening and screening
  • Cast iron shirts on cylinders
  • Hydraulic valve lifters
  • Total pressure lubrication

Silent and undisturbed operation.

  • Main cover of engineering material
  • Mechanical fuel pump
  • CARB and EPA Certified Emissions

Simple and reliable starts.

  • carburetor Smart-Choke smart choke™
  • Electronic ignition system
  • Starter with solenoid
Displacement (cc)674cc
Cylinders2
FARMINGFeeder, Grain auger, Utility tractor, Utility vehicle, Conveyor belt, Two-wheel tractor, Bale thresher
GENERATOR OF ELECTRICITY | WELDING EQUIPMENTMarine Generator, RV Generator, Emergency Residential Generator, Light Tower, Mobile Generator, Portable Generator, Welder
INDUSTRIAL | BUILDINGConcrete Leveller, Bulldozer,
GARDENS AND LANDSCAPINGAerator, Sawmill, Garden vacuum cleaner, Sweeper,
FuelGasoline
Power20.5HP
Frequency3600rpm
PA-CH640-3201
  • Gasoline
  • Agricultural Version
    Power 20,5 HP
    Electric start
    36.5mm cylindrical crankshaft
    2 cylinders in V
    4-stroke
    Air-cooled
    674cc
    3600rpm
PA-CH640-3226
  • Gasoline
  • Agricultural Version
    Power 20,5 HP
    Electric start
    36.5mm cylindrical crankshaft
    2 cylinders in V
    4-stroke
    Air-cooled
    674cc
    3600rpm
    Stage V
PA-CH640-3007
  • Gasoline
    Power 20,5 HP
    Electric start
    36.5mm cylindrical crankshaft
    2 cylinders in V
    4-stroke
    Air-cooled
    674cc
    3600rpm
PA-CH640-3008
  • Gasoline
    Power 20,5 HP
    Electric start
    28.5mm cylindrical crankshaft
    2 cylinders in V
    4-stroke
    Air-cooled
    674cc
    3600rpm
PA-CH640-3206
  • Gasoline
    Power 20,5 HP
    Electric start
    28.5mm cylindrical crankshaft
    2 cylinders in V
    4-stroke
    Air-cooled
    674cc
    3600rpm
PA-CH640-3225
  • Gasoline
    Power 20,5 HP
    Electric start
    28.5mm cylindrical crankshaft
    2 cylinders in V
    4-stroke
    Air-cooled
    674cc
    3600rpm
    Stage V

Spare PArts for Engine Kohler CH640

SHIPPING IN SPAIN AND PORTUGAL

IBERIAN PENINSULA (SPAIN AND PORTUGAL)

Shipping cost: 7,50 €

Balearics, Ceuta and Melilla

Shipping cost: 9,50 €

Canary Islands

Shipping rates to the Canary Islands depend on the weight of the package:

0 TO 10KG10 TO 75KG75 TO 150KG>150KG
37€67€127€222€

Shipping to European Union

ZONES0 TO 10KG10 TO 75KG75 TO 150KG>150KG
ZONE 1*   17€32€62€92€
ZONE 2**32€62€122€142€
ZONE 3 ***37€67€127€222€

*Zone 1: Germany, Belgium, Denmark, Slovakia, France, Ireland, Italy, Luxembourg, Netherlands, Poland, Sweden

**Zone 2: Austria, Croatia, Estonia, Finland, Latvia, Lithuania, Czech Republic

**Zone 3: Bulgaria, Cyprus, Slovenia, Hungary, Malta, Romania

Shipments to Europe to non-European Union Countries (*1)

0 TO 10KG10 TO 75KG75 TO 150KG>150KG
35€65€125€220€

Shipping to África (*2)

0 TO 10KG10 TO 75KG75 TO 150KG>150KG
60€120€200€370€

Shipping to Asia y Oceanía (*3)

0 TO 10KG10 TO 75KG75 TO 150KG>150KG
70€180€280€400€

Shipping to North América (*4)

0 TO 10KG10 TO 75KG75 TO 150KG>150KG
90€200€300€450€

Shipping to Central, South America and Islands (*5)

0 TO 10KG10 TO 75KG75 TO 150KG>150KG
80€190€290€400€

Shipping to Nordic Islands (*6)

0 TO 10KG10 TO 75KG75 TO 150KG>150KG
120€230€350€550€

(*1) No EU: Norway, United Kingdom, Switzerland, Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldova, Montenegro, Serbia, Ukraine, Turkey, Gibraltar, Vatican City, Liechtenstein, Monaco, San Marino, Guernsey, Jersey,

(*2) Africa: Morocco, Equatorial Guinea, Algeria, Egypt, South Africa, Chad, Gambia, Central African Republic, Tunisia, Yemen, Sudan, Angola, Benin, Botswana, British Indian Ocean Territory, Burkina Faso, Burundi, Cape Verde, Cameroon, Democratic Republic of Congo, Republic of Congo, Ivory Coast, Djibouti, Eritrea, Ethiopia, Gabon, Ghana, Guinea-Bissau, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritius, Mauritania, Mozambique, Namibia, Niger, Nigeria, Reunion Island, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Swaziland, Tanzania, Togo, Uganda, Zambia, Zimbabwe, Comoros, Mayotte, Somalia, Libya

(*3) Asia + Oceanía: Israel, Bangladesh, Bhutan, Burma, Brunei, Nepal, Sri Lanka, Armenia, Azerbaijan, Georgia, Kazakhstan, Kyrgyzstan, Turkmenistan, Uzbekistan, Singapore, Thailand, Taiwan, Mongolia, Hong Kong, Philippines, Indonesia, Malaysia, Japan, South Korea, India, Saudi Arabia, Bahrain, United Arab Emirates, Jordan, Kuwait, Lebanon, Oman, Pakistan, Qatar, China, Laos, Macau, East Timor, Vietnam, Afghanistan, North Korea, Palestinian Territories, Iraq, Tajikistan, Cambodia, Iran, Russia, Australia, Norfolk Island, New Zealand, Cook Islands, Fiji, Guam, Northern Mariana Islands, Kiribati, Marshall Islands, Micronesia, New Caledonia, Palau, Papua New Guinea, French Polynesia, Solomon Islands, Samoa, American Samoa, Tuvalu, Vanuatu, Wallis and Futuna, Maldives, Tonga, Nauru, Niue, French Southern Territories.

(*4) North America: USA, Mexico, Canada, Saint Pierre and Miquelon

(*5) Central + South America + Islands: Puerto Rico, Belize, Costa Rica, El Salvador, Guatemala, Haiti, Honduras, Nicaragua, Dominican Republic, Chile, Argentina, Brazil, Bolivia, Panama, Paraguay, Peru, Uruguay, Venezuela, Colombia, Ecuador, Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bermuda, Dominica, Grenada, Guadeloupe, Guyana, Virgin Islands, Jamaica, Martinique, Montserrat, Saint Martin, Saint Vincent and the Grenadines, Saint Lucia, Trinidad and Tobago, Netherlands Antilles, South Georgia and the South Sandwich Islands, Maldives, Saint Barthelemy, Turks and Caicos Islands, Cayman Islands, Saint Kitts and Nevis, US Virgin Islands, Cuba, French Guiana, Suriname.

(*6) Nordic Islands: Iceland, Greenland, Faroe Islands.

PA-CH740-3006
  • Industrial
  • Cilindros doble en V
  • Potencia 25 hp
  • 4 tiempos
  • Arranque eléctrico
  • Cigüeñal Cónico 27
  • Gasolina
PA-CH740-3005
  • Cilindros doble en V
  • Potencia 25 hp
  • 4 tiempos
  • Arranque eléctrico
  • Cigüeñal 36,5mm
  • Filtro Aire Cartucho Plano
  • Gasolina
PA-CH740-3137
  • Especial Toro
  • Cilindros doble en V
  • Potencia 25 hp
  • 4 tiempos
  • Arranque eléctrico
  • Cigüeñal Cónico 27
  • Gasolina

Kohler CH740 Engine Features

The STANDARD CH740-3006 version includes a steering wheel channel prepared for fixed protection.

The INDUSTRIAL version CH740-3005 includes fixed weed protection

  • Valves in the head
  • Hydraulic tappets
  • Advanced Digital Powered System
  • Cylinder with internal casting lining
  • Ball bearing on PTO side
  • Electronic ignition
  • Dual element dry air filter
  • Ventilator and anti-stowage protection
  • Gas recirculation system
  • Exhaust valves in Stellite
  • Forced lubrication
  • In-line high capacity fuel filter
  • Yellow oil filler cap on rocker arm cover
  • Oil dipstick in yellow
  • High-capacity, dual-drain oil filter
  • Sensor Oil Sentry (wired but not connected)
  • Speed controller
  • Carburettor with high performance accelerator pump
  • Automatic carburettor stop and start selenoid
  • Mechanical A/C pump
  • High performance spark plugs
  • Electric starter 12V
  • 20 Amp alternator with voltage regulator
  • Cylindrical Crankshaft
  • Coupling of 4 threaded holes at 3/8-16 in 143mm
  • Centering in 178mm
  • Black aluminium cassette sheets

Model

  • Command PRO CH740

HP (kW) 1

  • 25(18.6)

Displacement (cc)

  • 44.0 (725)


Perforation in (mm)

  • 3.3 (83)


Stroke in (mm)

  • 2.6 (67)


Gross torque ft lbs (Nm) 1

  • 39.2 (53.1)


Compression ratio

  • 9.0:1


Dry weight pounds (kg)

  • 94 (43)


Oil capacity in quarts (L)

  • 2 (1.9)


Lubrication

  • Full pressure with full flow filter


Dimensions LxWxH (in)*

  • 14 x 17.7 x 19


Back pressure limit 2

  • 50


Certified power HP (kW) 3

  • 24.4 (18.2)


Certified RPM

  • 3600


Emissions compliance

  • EU Stage V


CARB Phase III

  • EPA Phase III


Engine type

  • Commercial

  • Integrated oil coolers extend oil change intervals and maintain low temperatures throughout the power range
  • High efficiency, heavy duty air filters provide protection from debris and ensure longer service intervals
  • Extra large sleeve bearings support heavy loads in commercial and industrial environments
